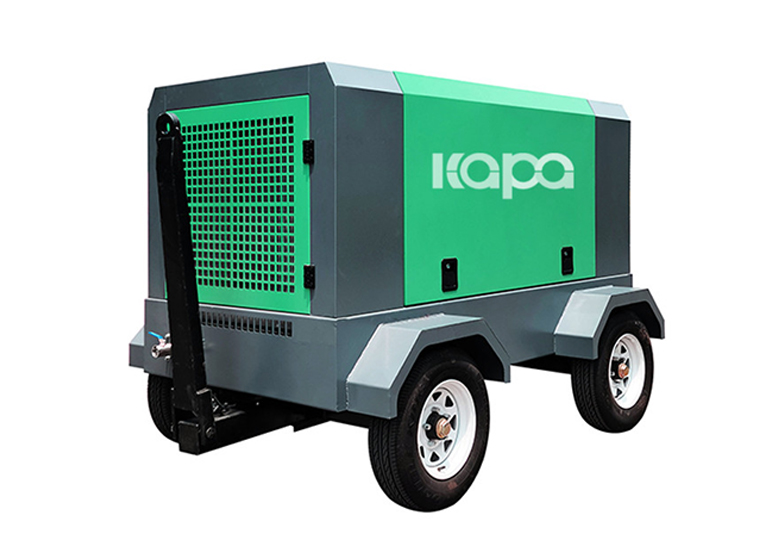

8 Bar 7.5 m3/min diesel stationary Compressor Towable Compressor
diesel powered for drilling rigs and mining
Diesel Screw Air
Compressor Description:
1:Using Yuchai diesel engine as power to ensure high reliability of
poweroperation long life and best fuel economy, suitable for
harshworkingenvironments in the wild.
2:The main engine is efficient and energy-saving, stable and
reliableasyto operate,and the operation is clear at a glance.
3:Reasonable matching design of fan and cooler ensures
thenormaloperation ofthe machine.
4: Using stepless air intake control to make the whole machine
highly efficientand energy-saving
5: Uing high-efficiency four-stage motor , longer life and more
reliable
6: Reasonable chassis design makes the fuselage stronger and more
stable.
Model Specification | KGCY-7/8 |
|
| (M³/Min/Mpa) | 7.5／0.8 |
| Power Kw/ HP | 60KW/80HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air Cooling |
| Discharge Temp | ≤Ambient +15℃ |
| Lub Oil Capacity (Liter) | 4L |
| Noise Level Db(A) | 75 |
| Driven Mode | Direct Drive |
| Power (V/Ph/Hz) | 380V/50Hz |
| Starting Mode | VFS |
| Dimension (mm) | 1008*700*885 |
| Net Weight (kg) | 1000 |
| Out let Diameter (inch) | G3/4-G11/2 |
Diesel compressor Unique design
Kapa compressor new series is matched with IE4 permanent magnet frequency
conversion high-level efficiency motor, the electromagnetic scheme
of the motor is greatly optimized, and the motor efficiency is
greatly improved, thus greatly reducing the user's use cost and
contributing to saving the user's electricity bill.
IE4 permanent magnet variable frequency motor uses rare earth
material NdFeB, among which NdFeB is a permanent magnet with super
performance among contemporary magnets, which has the
characteristics of high remanence, high coercivity, high magnetic
energy product and high performance-price ratio, and is easy to be
processed into various sizes. Now it has been widely used in
aviation, aerospace, electronics, electroacoustic,
electromechanical, instruments, meters, medical technology and
other devices and equipment requiring permanent magnetic field.
Permanent magnet variable-frequency motor is a device that uses
permanent magnets to establish excitation magnetic field, so as to
realize efficient conversion of electromechanical energy. It
rotates synchronously like electrically excited synchronous motor,
which is also called permanent magnet synchronous motor. Compared
with the synchronous motor with electric excitation, the permanent
magnet variable frequency motor has the advantages of excellent
energy efficiency (up to IE4), compact structure, small size and
light weight. Because the permanent magnet variable frequency motor
cancels the electric excitation system, the motor efficiency is
improved, and the motor structure is simplified and the operation
is very reliable.
Advantages of Kapa brand
Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving
certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support
and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your
actual needs)
why choose Kapa compressor
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the
support of the ball bearings and roller bearings as a result. The
damage and the cost are lowered and the service life is extended.
Some force is counteracted by the axial force generated by the
bevel gear. So the load on the bearings of the master machine is
lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can
integrate the electromotor with flange, shaft coupling box-gear
box. and the master machine into one in such way the master machine
and the electrometer are aligned forever in the transpiration. The
SRC series compressors equipped with effective and fully sealed
air-cooling electromotor.
