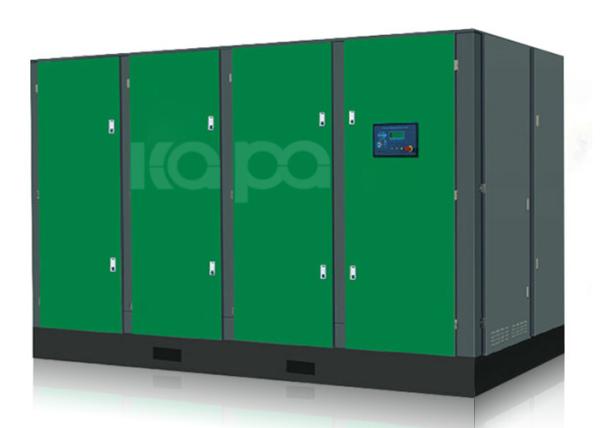

45kw / 60Hp 7.1m³／min Permanent Magnet Variable Frequency air
compressor 1463*1060*1315
Description
Characteristics of permanent magnet variable frequency air
compressor:
The essence of high-efficiency frequency conversion of permanent
magnet is to control the rotation of space magnetic field of
electric bai machine.
The stator winding generates a rotating magnetic field synchronized
with the power frequency through three-phase alternating current.
Basic components of permanent magnet synchronous motor: stator
winding, rotor and machine body.
The rotor is a permanent magnet made of permanent magnet material,
which starts to rotate under the action of the rotating magnetic
field generated by the stator winding.
Energy saving effect of permanent magnet frequency conversion air
compressor
The biggest advantage of permanent magnet variable frequency air
compressor is energy saving, which can generally save 10%~35%. The
amount of energy saving depends on the working condition of air
compressor and the setting of inverter parameters. The biggest
factor is the working condition of the air compressor. When the
customer's gas consumption fluctuates greatly, the better the
energy-saving effect will be. The most direct data is the
proportion of the idle time to the total working time.
Specification
Model
Specification | KL40-50P/YC |
|
| (M³/Min/Mpa) | 7.1／0.8 |
| Power Kw/ HP | 40KW/54HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air Cooling |
| Discharge Temp | ≤Ambient +15℃ |
| Lub Oil Capacity (Liter) | 22L |
| Noise Level Db(A) | 75 |
| Driven Mode | Direct Drive |
| Power (V/Ph/Hz) | 380V/50Hz |
| Starting Mode | VFS |
| Dimension (mm) | 1463*1060*1315 |
| Net Weight (kg) | 620 |
| Out let Diameter (inch) | RP2-1/2 |
Unique design
Advantages of Kapa brand
Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving
certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support
and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your
actual needs)
why choose us
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the
support of the ball bearings and roller bearings as a result. The
damage and the cost are lowered and the service life is extended.
Some force is counteracted by the axial force generated by the
bevel gear. So the load on the bearings of the master machine is
lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can
integrate the electromotor with flange, shaft coupling box-gear
box. and the master machine into one in such way the master machine
and the electrometer are aligned forever in the transpiration. The
SRC series compressors equipped with effective and fully sealed
air-cooling electromotor.
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial
Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support
according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your
equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other
electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly
welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
