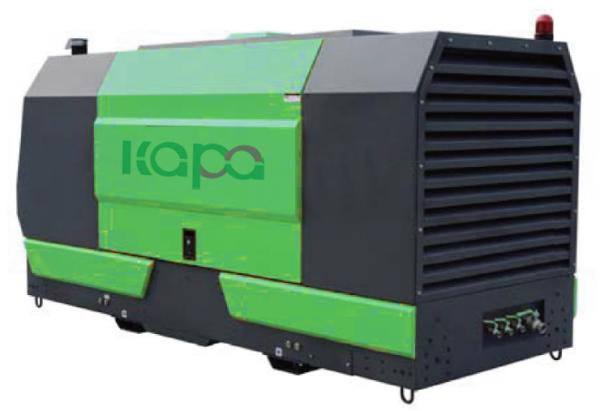

Two Stage Air Compressor 7.5kw-250kw Rated Power 4.1-62m³/m Air
Flow 0.7-1.6Mpa Pressure
How to choose the right air compressor
In our daily sales work, we have noticed that some air compressor
users don't really understand how to choose the right compressor
specially if they are only responsible for the purchase and finance
departments. So, we decided to start a course to help all friends,
so if you are a DENAIR client or not, you are all welcome to ask us
anytime if you have any question about Air Compressors.
Today, we will start with the basics; Capacity and pressure
Pressure and capacity are the two main specifications to look for
when buying an air compressor;
- Pressure is expressed in bar or PSI (pounds per square inch).
- Capacity is expressed in CFM (cubic feet per minute), liters per
second, or cubic meters per hour/minute.
Remember: pressure is 'how strong', capacity is 'how much.
- What's the difference between a very small and a very large
compressor? It's not the pressure, it's the capacity.
What pressure do I need?
Most compressed air equipment is designed to operate at around 7 to
10 bar, For this reason, most people only need a compressor with a
maximum pressure of 10 bar, For some applications, higher pressure
is needed, like 15 or 30 bar. Sometimes even up to 200 - 300 bar or
more (scuba diving and paintball for example).
How much pressure do YOU need?
Look at the tools or machines you use, it should state the required
minimum pressure but be sure to check the specs or ask the
manufacturer.
What size/capacity (CFM/m3*min) do I need?
Capacity is the amount of air that the compressor can pump out. It
is expressed in CFM (cubic feet per minute).
How much capacity do you need?
Add up the requirements for all the air tools and machines that you
have.
This is the maximum capacity that your equipment requires together.
Specifications
Model
Specification | KP37-0.8II | KP45-0.8II | |
|
| (M³/Min/Mpa) | 6.9/0.8 | 9.63/0.8 | |
| Power Kw/ HP | 37KW/50HP | 45KW/60HP | |
| Ambient Temperature ℃ | 2℃-45℃ | 2℃-45℃ | |
| Cooling Mode | Air Cooled | Air Cooled | |
| Discharge Temp | ≤Ambient +15℃ | ≤Ambient +15℃ | |
| Lub Oil Capacity (Liter) | 33.9L | 42.3L | |
| Noise Level Db(A) | 70±2 | 70±2 | |
| Driven Mode | Direct Drive | Direct Drive | |
| Power (V/Ph/Hz) | 380V/3/50Hz | 380V/3/50Hz | |
| Starting Mode | VFS | VFS | |
| Dimension (mm) | 1880*1180*1520 | 2180*1430*1720 | |
| Net Weight (kg) | 950 | 1530 | |
| Out let Diameter (inch) | RP1-1/2 | RP2 | |
Advantages of Kapa
1. High-quality control(ISO 9001-2000/ISO14001/ASME/Energy saving
certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support
and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your
actual needs)
why choose us
The longer service life of the master machine
The rotor uses an asymmetrical line running at a low speed with the
support of the ball bearings and roller bearings as a result. The
damage and the cost are lowered and the service life is extended.
Some force is counteracted by the axial force generated by the
bevel gear. So the load on the bearings of the master machine is
lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can
integrate the electromotor with flange, shaft coupling box-gear
box. and the master machine into one in such way the master machine
and the electrometer are aligned forever in the transpiration. The
SRC series compressors equipped with an effective and fully sealed
air-cooling electromotor.
FAQ
Q1: Why customers choose Kapa?
A: KAPA has 20 years of experiences specialized in screw air
compressor industry. R & D team and engineers originally from
Sullair, with SGS and ISO certified management and control system.
We warmly welcome your small trial order for quality and market
test.
Q2: Are you a direct manufacturer or just a trading company?
A:We are a professional manufacturer with big modern workshops
situated in Pingxiang Lianhua Industrial Park,Jiangxi Province,
China. Both OEM & ODM service are available.
Q3: How about your delivery time?
A: Generally 20-30 days. While if ordering special designs or
customized models, shipping time will be somewhat longer. Exact
time please contact sales in advance to confirm then.
Q4: HOW LONG IS YOUR AIR COMPRESSOR WARRANTY?
A: One Year for the whole machine and two years for screw air-end.
Q5: HOW ABOUT YOUR AFTER-SALES SERVICE?
A:We provide customers with installation and commissioning online
instructions.well-trained engineer will troubleshoot within 24-48
hours through online videos or calls.
