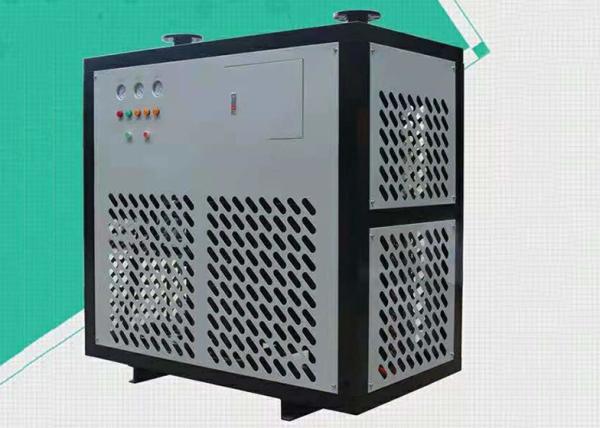

32.0m³/min Energy saving and high quality Water cooled dryer
Describe:
The saturated water content of compressed air is related to
temperature, and the water content decreases when the temperature
drops. Freezing dryer is to use the principle of refrigeration to
cool the compressed air, and discharge the condensate water, so as
to achieve the purpose of drying compressed air.The use of Kapa
freeze dryer can effectively avoid the occurrence of condensation
water, corrosion and leakage of air pipes, and the decline of
machine operation efficiency.
Specification
| Model Specification | Kpa11 |
|
| Pressure dew point(PDP) | 2-8℃ |
| Power Supply | 380 |
| Rated pressure admission | 1Mpa |
| Rated inlet air temperature | ≤80℃ |
| Cool method | water |
| power | 5.2kw |
Our advantage
1 Special design, small pressure difference, energy saving and
power saving.
2 High quality thickened copper tube is used to prevent copper tube
leakage caused by corrosion, so as to prolong its service life.
High performance heat exchanger is used.
3 The design allowance of the whole machine is increased by 20% to
ensure the stable operation of the unit under severe working
conditions. The anti rust paint is applied inside the cylinder to
prevent internal rust.
4 High efficiency gas water separator and multiple drainage design,
drainage more timely and thorough, avoid water residue, effectively
protect the compressor life.
Applicable industries:
Kapa 32.0m³/min Energy saving and high quality Water cooled
dryer,Widely used in stores, metallurgy, machinery, automobile
manufacturing, petroleum, chemical, textile, chemical fiber, light
industry, paper, rubber, instrumentation, food, medical,
biological, daily chemical and other business
