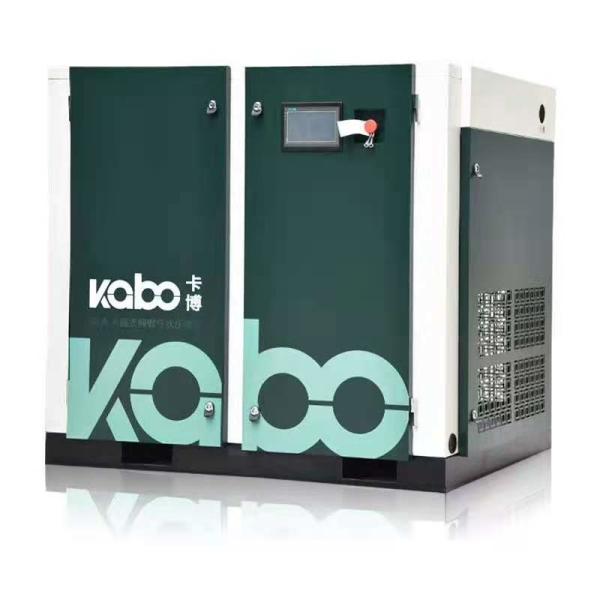

15KW / 20HP 1.0m³ / min Intelligent High Efficiency Industrial Air
Compressor1950*840*1745
Description
Air end
Adpot high efficiency air end , low bearing noise, adopt oil fog
shower cooling, holding body constant temperature movemet.
Motor
high efficiency, low noise motor, high protection grade, Wide range
of applications
Long service life
cooling
large margin heat dissipation area design, heat dissipation effect
is strong, avoid high temperature shutdown.
Design of intelligent heat dissipation fan, which can start and
stop heat dissipation automatically according to temperature
degree.
oil core separation
Using high efficiency oil and gas separator, the residual oil
content is less than 3pDm, and the working temperature can reach
120.
Degrees Celsius. It has the advantages of low pressure drop and
energy saving, long service life, low fuel consumption, reliable
and stable performance.
oil filtration
The fixed particles of 25um can be filtered out by using high
quality and high strength filter medium, and the working
temperature can reach 120 degrees Celsius. It has long service
life, corrosion resistance, reliable and stable performance.
hose
Strong weather resistance, anti-aging, anti-ozone ultraviolet
radiation
Electrical apparatus
Adopt imported high quality electrical equipment to effectively
ensure the machine
More stable, no mechanical transmission failure: high-fficiency
permanent magnet synchronous motor and screw male rotor adopt
embedded-integrated shaft direct connection,structure, no gear
transmission, completely eliminate gear pitting or broken teeth;
Two independent permanent magnet motors are integrated directly
drive two air ends, no coupling failures.
More energy efficient, the air end is always running at
energy-saving speed.
More efficient and fficient permanent magnet motor + no
transmission efficiency loss.
More compact: The permanent magnet motor is small in size and the
integrated structure saves space.
More comfortable, low running noise, eliminating three sources of
noise: no-click bearing noise, no gear meshing noise, no coupling
drive noise.
Under the set frequency conversion pressure, the unit will
automatically adjust to keep the output pressure within 士0.1 bar,
reducing unnecessary waste (the power consumption increases by 7%
for every 1 bar of pressure increase).
Model
Specification
| kp15KW-1.6/YC |
| (M³/Min/Mpa) | 1.0/1.6 |
| Power Kw/ HP | 15KW/20HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air Cooled |
| Discharge Temp | ≤Ambient +15℃ |
| Noise Level Db(A) | 70±2 |
| Driven Mode | Direct Drive |
| Power (V/Ph/Hz) | 380V/3/50Hz |
| Starting Mode | VFS |
| Dimension (mm) | 1950*840*1745 |
| Net Weight (kg) | 539 |
| Out let Diameter (inch) | RP1 |
⊙ Schematics
| 1. Air Filter | 9. Oil Temperature Control Valve |
| 2. Air-in Easing Value | 10. Oil Filter |
| 3. Principal Screw Machine | 11. One-way Shut-off Valve |
| 4. Oil Air Separator | 12. Pressure Gage |
| 5. Oil Air Separating Filter Core | 13. Safety Valve |
| 6. Minimum Pressure Valve | 14. Vent Valve |
| 7. Radiator with Aluminum Alloy Fans | 15. Compressed Air Dry Separator |
| 8. Return Check Valve | 16. Motor
|
Advantages of Kapa brand
Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving
certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support
and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your
actual needs)
why choose us
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the
support of the ball bearings and roller bearings as a result. The
damage and the cost are lowered and the service life is extended.
Some force is counteracted by the axial force generated by the
bevel gear. So the load on the bearings of the master machine is
lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can
integrate the electromotor with flange, shaft coupling box-gear
box. and the master machine into one in such way the master machine
and the electrometer are aligned forever in the transpiration. The
SRC series compressors equipped with effective and fully sealed
air-cooling electromotor.
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial
Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support
according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your
equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other
electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly
welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
