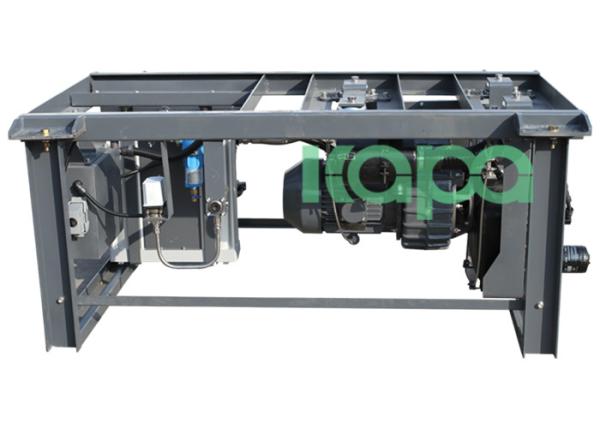

2.0 m³ 0.7mpa Integrated urban compact subway air compressor
Metro enterprises need energy-saving and convenient energy-saving
air compressor for metro vehicle maintenance, and it is better to
be miniaturized. At this time, most of the commonly used air
compressors are integrated air compressors. After the actual use of
subway enterprises, the integrated "small head" air compressor can
perfectly complete each task, which plays a huge role in subway
maintenance.
Features & Benefits:
1. High reliability: the compressor has few parts and no wearing
parts, so it operates reliably and has a long service life. The
overhaul interval can reach 40000-80000 hours;
2. Convenient operation and maintenance: high degree of automation,
operators do not have to go through a long period of professional
training, can achieve unattended operation;
3. Good dynamic balance: no unbalanced inertia force, stable
high-speed operation, no foundation operation, especially suitable
for mobile compressor, small volume, light weight, less floor area;
4. Strong adaptability: with the characteristics of forced gas
transmission, the volume flow is almost not affected by the exhaust
pressure, and can maintain high efficiency in a wide range of
speed.
In addition, the small integrated / combined air compressor
products also have a wide range of gas consumption, with an exhaust
volume of 2.0 ~ 4.0 cubic meters and an exhaust pressure of 0.7 ~
4.0 MPa, almost all of which are suitable for road maintenance.
.
Certificate
CE, ISO9001/ISO 14001, Noise Certification
Technical Specifications:
| Free Air Delivery (M3/min) | 2.0 |
| Working Pressure (psig/bar) | 100/7 bar |
| Screw Oil Volume-(L) | 20L |
| Engine Model | YANMAR 4TNV94L-BXPHZ |
| Rated Power (HP/KW) | 34.6KW |
| Rated Speed/Idle (rpm) | 2200/1600 |
| Displacement (L) | 3.054 |
| Cylinders | 4 |
| Emission Class | EU Stage IIIA |
| Battery Voltage (V) | 12V |
| Fuel Tank Capacity (L) | 75L |
| Connector Size*Qty | G3/4" *2 |
| Weight (Kgs) | 1200Kg |
| Dimension (mm) | 3400*1500*1650mm |
| Noise {dB(A)} | 68 |
| Working Temp.(℃) | -15℃~50℃(special conditions can be customized) |
