High Pressure Portable Screw Air Compressor 325 HP 20 Bar High
Efficiency

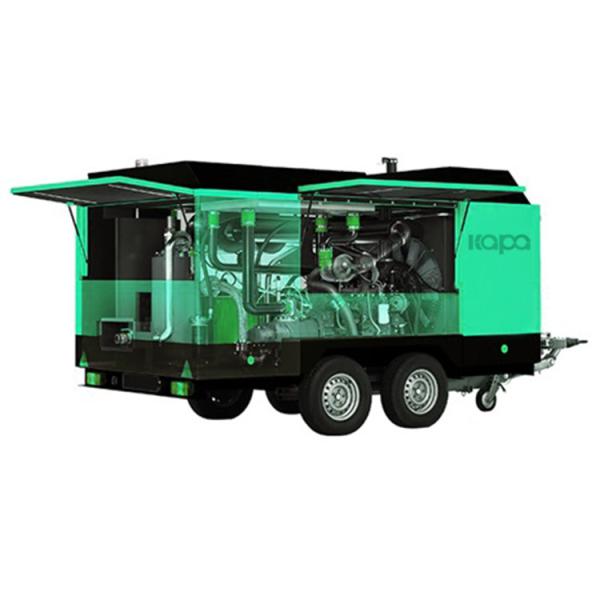

Kapa portable diesel rotary screw air compressor.
KAPA Series Portable Screw Air Compressor are designed for a
variety of segments like abrasive sandblasting, construction and
mining.
where they are used to drive heavy pneumatic tools like jack
hammer, pavement breaker, chipping hammer, pneumatic pumps,
down-The-Hole drills, drilling rigs, water well drilling, sand
blasting etc.
•Greater fuel efficiency and energy saving
•Air filtration system with vacuum indication for dust environments
•Compressor oil and engine coolant coolers to optimize performance
and extend engine life
•Efficient compressor oil filter
•Fuel filter with water separator
•Easy to remove, translucent PE fuel tank
| Model | Portable Screw Air Compressor |
| Capacity(m³/min) | 9 |
| Working Pressure(Mpa) | 1.4 |
| Weight(kg) | 2380 |
| Dimension(mm) | 4080*1980*2350 |
| Tire specification | 6.50-16*2 |
| Matched Power | Yuchai/Cummins |
| Model | YC6B150Z-K20(YC6108ZG) |
| Type | Vertical, orthostichous, water cooled |
| Suction Way | Supercharge, inter-cooling |
| Bore*Stroke*Cylinders | 108*125*6 |
| Exhaust Volume (L) | 6.871 |
| Rated Speed (r/min) | 18000 |
| Uninstall Speed (r/min) | 1400 |
| Rated Power (kW/HP) | 110/150 |
| Diesel oil capacity (L) | 15 |
| Fuel tank capacity (L) | 130 |
| Electrical system voltage (V) | 24 |
| Head Model | SKY148LH |
| Compression stages | 1 |
| Compressor oil capacity (L) | 35 |
| Supply valve specifications*Quantity | G11/2*1,G3/4*1 |
screw diesel air compressor main spare parts configuration:
| tem | Parts | Brand |
| 1 | Air end | SKK(USA) |
| 2 | Intake Valve | Hoerbiger(Austria).
Hongxing |
3 | Solenoid Valve | CEME(Italy).Hongxing |
| 4 | Temperature sensor | CEME(Italy).Hongxing |
| 5 | Pressure sensor | Huba original
(from Switzerland) |
| 6 | Motor | Qingjiang Motor |
| 7 | Coupling | Germany KTR or China Kapa |
| 8 | Thermostat Valve | Italy VMC |
| 9 | PLC | Schneider Electric(France). Siemens plot |
| 10 | Minimal Pressure Valve | Hoerbiger(Austria). |
| 11 | Air filter element | Germany MANN |
| 12 | Oil filter element | Germany MANN |
| 13 | Oil and gas separator element | Germany MANN |
| 14 | Bearing | Sweden SKF (life 60000 hours) |
