2.27m³ / min High efficiency stable Screw Air Compressor 15kw 20hp 0.8 Mpa​

Description

Screw Air Compressor ​adopt coaxial integrated design to reduce energy loss of traditional transmission . Dust and sound insulation cotton, 70 dB, kappa technology appearance design, support a variety of model selection, highly integrated, high reliability.

Specification

Screw Air Compressor : Energy saving and stability + convenient maintenance + superior price = high cost performance ratio

Unique design

Air duct Design :The unique and efficient silent exhaust type is more convenient for cleaning and maintenance, suitable for any environment, and reduces the noise to the minimum .

Tubing Design :The whole series is connected with precision round steel pipe to reduce the wear in the oil circuit, the appearance is more concise, the pipeline is more reliable and the service life is longer.

All computer control :Excellent computer control panel is selected to monitor the operation parameters of the unit in real time, which can realize automatic timing start and stop, remote control, maintenance plan, positive and reverse control, etc.

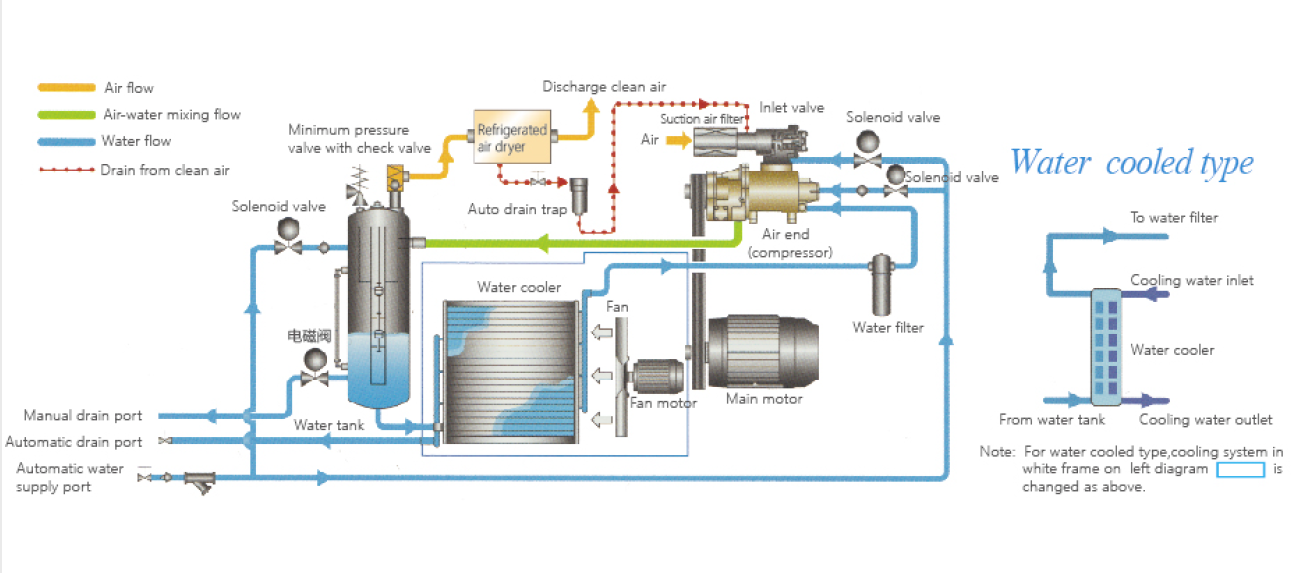

Screw air compressor work flow chart

Advantages of Kapa brand

1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)

why choose us ?

Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.

As a leading manufacturer of screw air compressors, Kappa has developed itself into a mature R&D,

manufacturing and sales network full system with the direct factory in Pingxiang Jiangxi province + Operation

Sales HQ in Dongguan Gunagdong China.

The strong manufacturing full system we have built is able to deliver reliable and high-quality products from

start to finish, we got you covered from installation to troubleshooting and to maintenance. By manufacturing

a full range of screw air compressors at most economic costs, we help the customers to develop fast with our strong support of supply and service.

​
