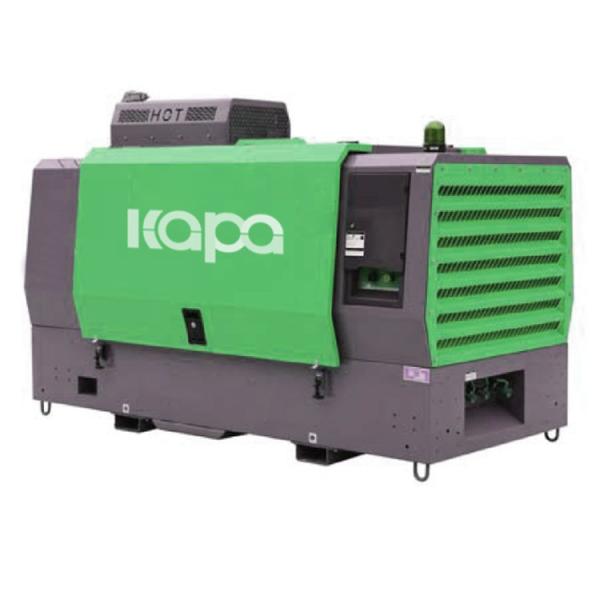

2 Years Warranty Portable Screw Air Compressor Mobile Air
Compressor For Mining
KAPA new designed protable diesel srew air compressor
Cooperation terms:
1.Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 7-15days.
Air end .Direct driven-No Gearing ,No Belt !
Rotors are the key elements in producing compressed air
efficiently.KAPA air ends utilize a male 5lobe rotor(driving
rotor)and a 6lobe female rotor(driven rotor).These state of the art Y profile rotors were introduced in
the Kaiser series compressor.
They have the following characteristics:
Larger rotors are designed to ensure the airends have slower
rotorspeeds to deliver compressed air more efficiently than smaller
air ends
This translates into energy cost savings and a longer unit life.
The rotor profile minimizes leakage andthe tighter clearances
achieved through state of the art manufacturing processes results in higher ,efficiency and improved lubrication.
The screw air compressor main configures as follows:
- 1. Main frame: Sweden Atla
- 2. Bearing:100% Sweden SKF (LIFE60000hours )
- 3. Solenoid valve: CEME Italy
- 4. Electro motor: ABB WOLONG
- 5. Thermostat valve : Austria Hoerbiger
- 6. Pressure sensor: Switzerland Huba imported with original
- 7. Container: Guangzhou Shenzhen
- 8. Oil filter: Germany MANN company imported with original
- 9. Oil and gas separator: Germany MANN company imported with
original
- 10. Lubricating Oil: Sweden Atlas screw air compressor oil imported
with original
- 11. Suction valve: Sweden Atlas imported with original
- 12. Pressure valve: Hoerbiger Austria company
- 13. PLC: Schneider Electric France
- 14. Oil system configuration of the pipeline were chrome-plated
brass
- More than 80% of imported famous brand accessories!
Specifications of air compressor :
| Model No. | Portable Screw Air Compressors |
| Free air delivery | 10m³/min(353cfm) |
| Working pressure | 13Bar/190Psi |
| The head model no. | SKY148LH |
| Compression Stage: | Single |
| Noise level db (a) | 80±3 |
| Outlet connection size*Qty | G1 ½×1&G¾×1 |
| Engine | |
| Engine Model No: | YC6B150Z-K20 |
| Rated RPM | 1800r/min |
| Unload RPM | 1400r/min |
| Rated Power | 110KW/150HP |
| Package | |
| Wheel size * Qtys | 6.5-16*2 |
| Weight | 2380KGS |
| Dimension (mm) | 4080*1980*2350 |
our advantages:
1. KAPA is the only manufacturer in china which is able to mass
produce the motor powered and diesel powered portable screw air
compressor, breaking the monopoly of foreign brand in the screw air
compressor.
2. Good adaptability: automatically control the air delivery of
diesel engine by matching the demand of air consumption, which
equal to frequency conversion control in motor power screw air
compressor.
3. Operation parameter is straightforward, with multiple warning
and shut down protection device.
